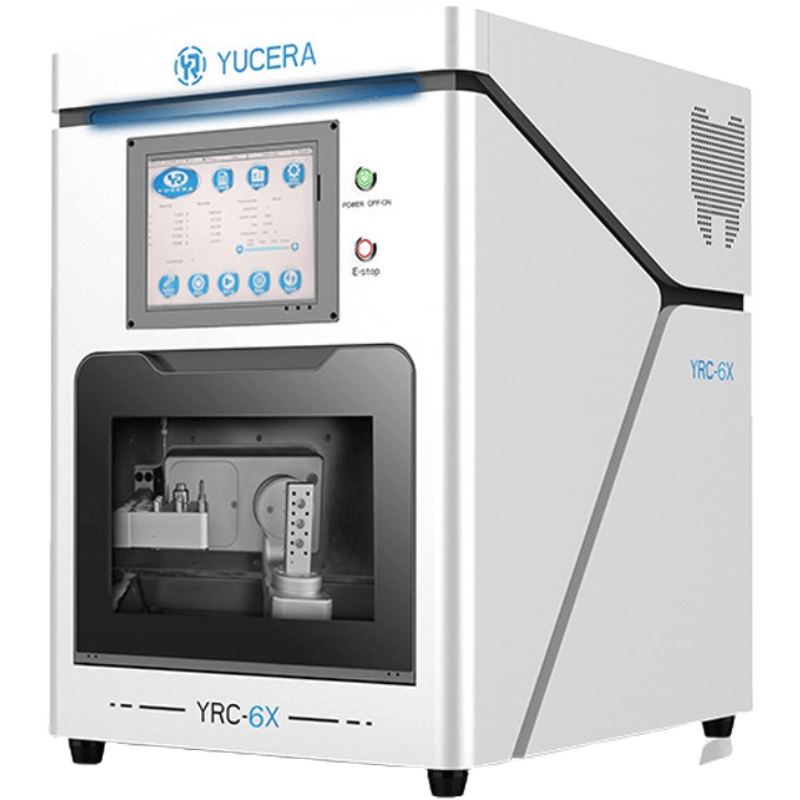

Yucera YRC-6X

Yucera YRC-6X

The high-precision Yucera YRC-6X five-axis milling machine for wet processing of all dental materials (glass ceramics, titanium, etc.) on site in your laboratory or practice. A dental milling machine for reliable and consistent results.

Product specifications:

  • Millable materials: glass ceramic, titanium, zirconium, PMMA/Wax, PEEK, composite materials
  • 5-axis milling machine for wet machining
  • 10-way tool magazine
  • 1.5kw work spindle
  • Dimensions WxHxD: 535x655x720 mm
  • Weight: 170 kg
  • including accessories and HyperDent software

dental milling machine wet processing

Do you have a question? Personal advice and a quote within 24 hours . Send inquiry now.

View full details

Technical data

Generally

Application area: dry/wet processing

Materials: glass ceramic, titanium, zirconium oxide, wax, PMMA, peek, composite material

Indications: Veneer, crown, bridge, inlay, onlay, implants, abutments, telescopes, splints

machine bed made of solid cast aluminum body

Housing: Sheet steel housing, white high-gloss lacquered

Number of axes: 5

linear axes xyz-axis

ground precision guides made of high-alloy steel.

machining accuracy ± 0.01mm

a-axis: angle of rotation 360°, infinite

b-axis: precision ball screw with rotary transmission.

Angle of rotation: +35° -90°. with highest angle precision

RGB LED lighting with status display

operating requirements

Nominal operating pressure: 6.0–7.5 bar (without water, oil-free)

Power: 220-230 volt. 1.5kw

spindle

High-frequency spindle, synchronous with pneumatic tool clamping

sealing the air to prevent dirt from entering

Speed: up to 60,000 rpm

Power: Peak power (pmax): 1500 watts. Nominal power: 800 watts

Dimensions & Weight

Dimensions (w/d/h): 535x655x750mm with opened flap

footprint (w/d): 480x580 mm

Weight: 170 kg

processing time

  • full crown ~15 min
  • 3-unit bridge ~30 min

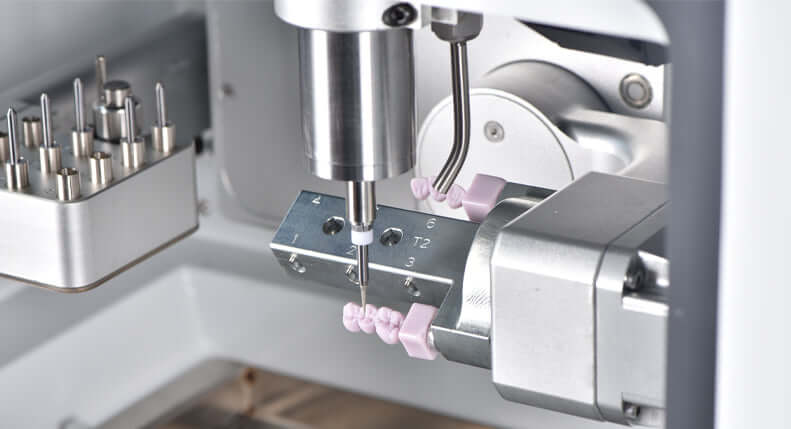

5-axis wet grinding

5-axis wet grinding machine, excellent for your chairside production. Whether lithium disilicate/e.max or titanium abutments, you are perfectly equipped with this.

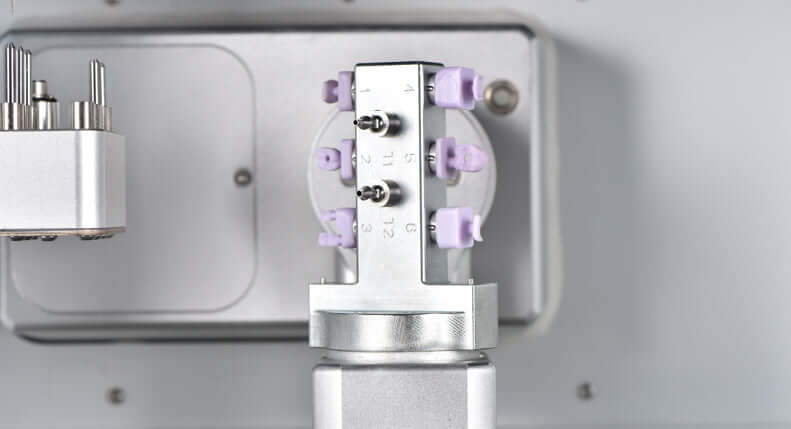

6 + 2 blocks

The holder offers space for 6 + 2 blocks of lithium disilicate and titanium

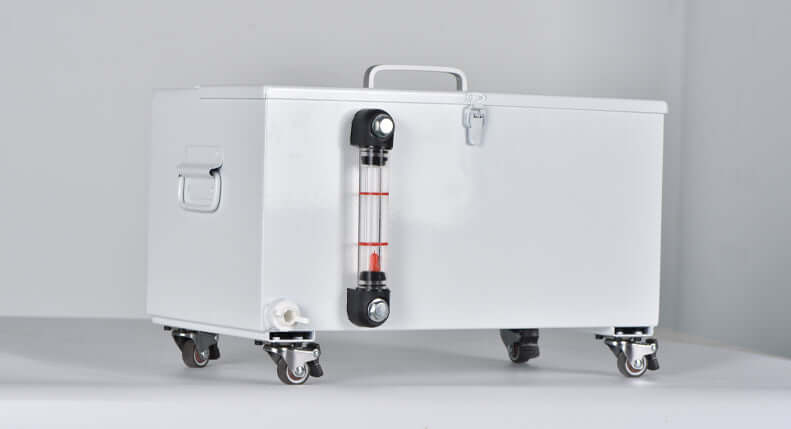

integrated water level monitoring

  • automatic water circulation system
  • integrated water level monitoring
