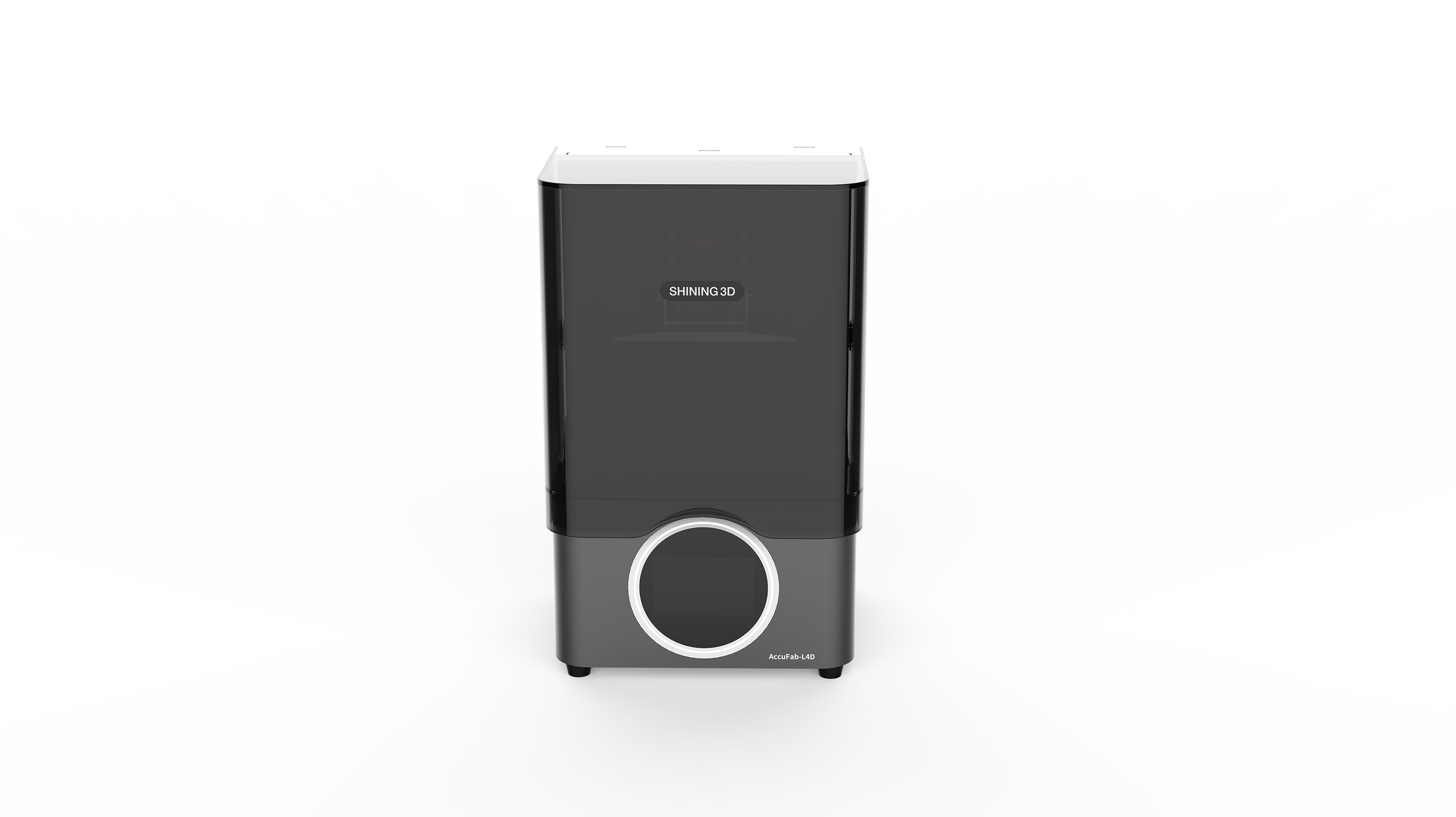

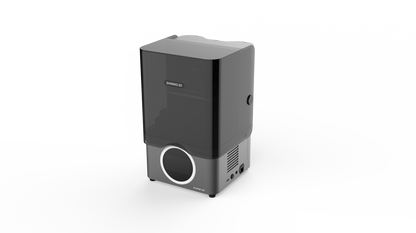

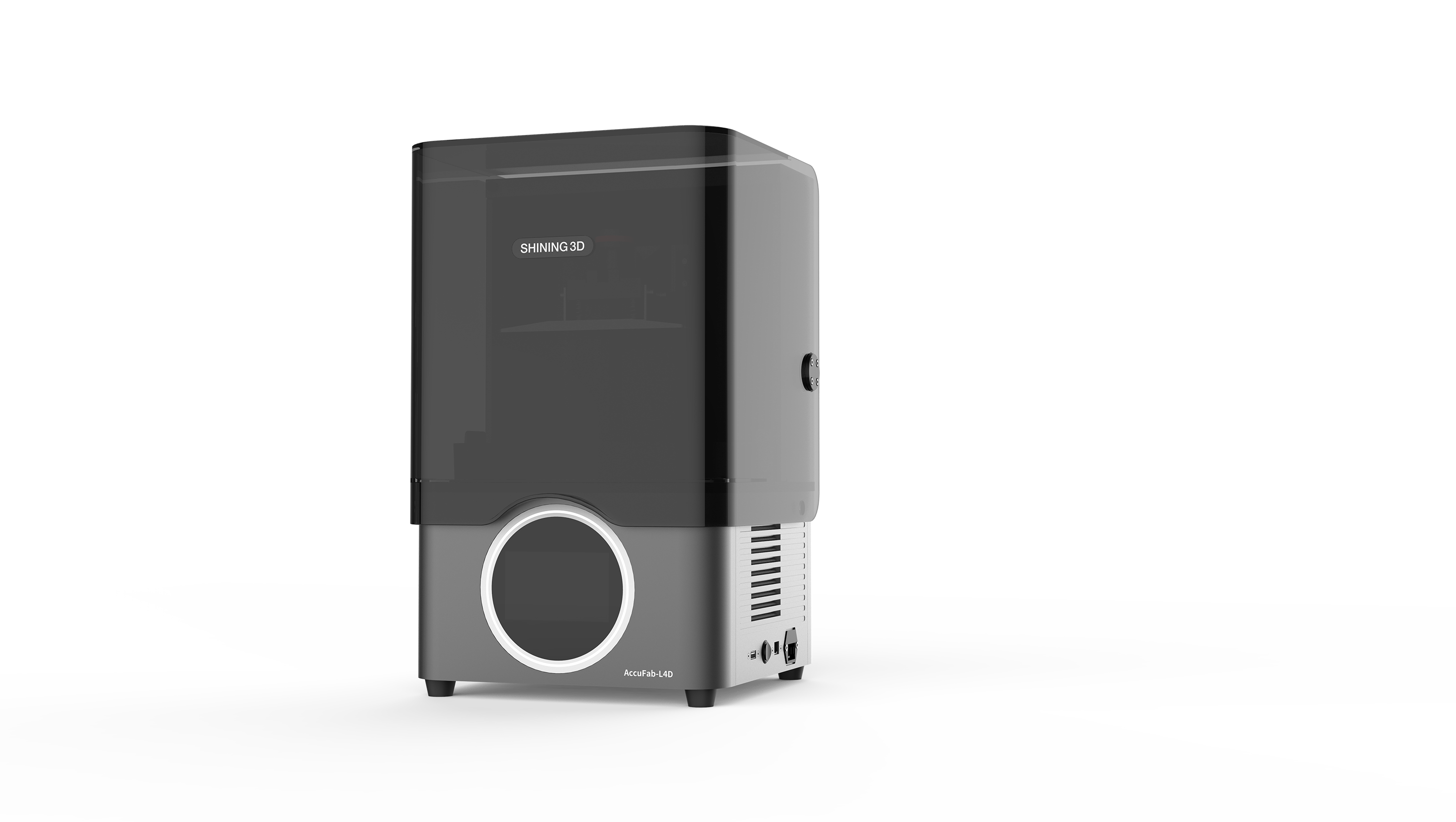

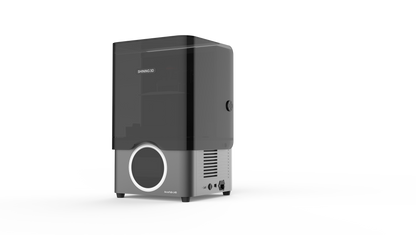

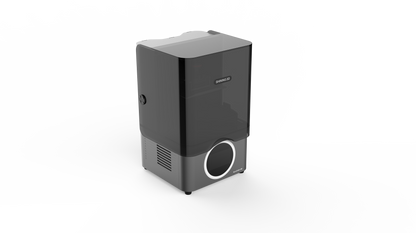

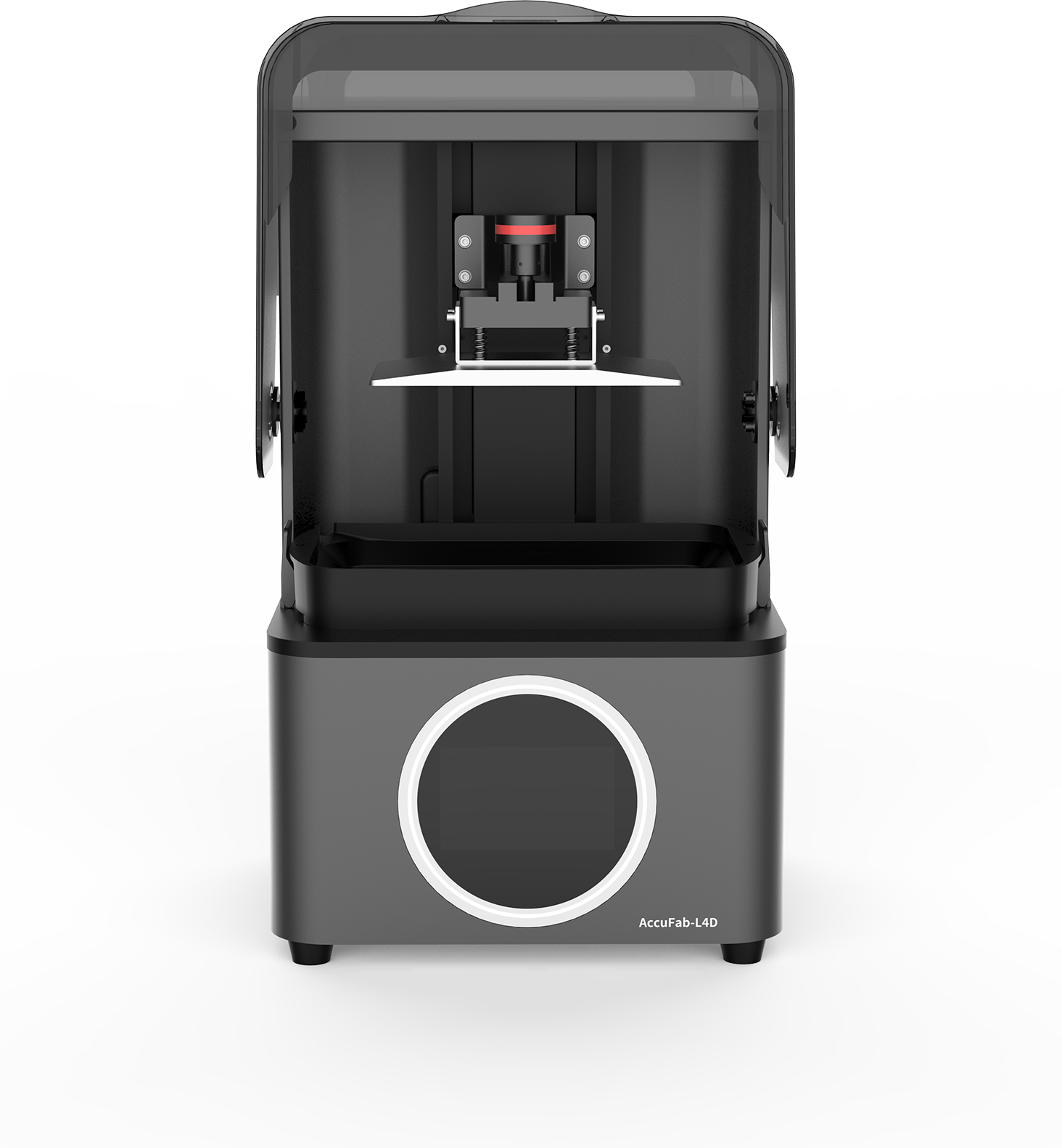

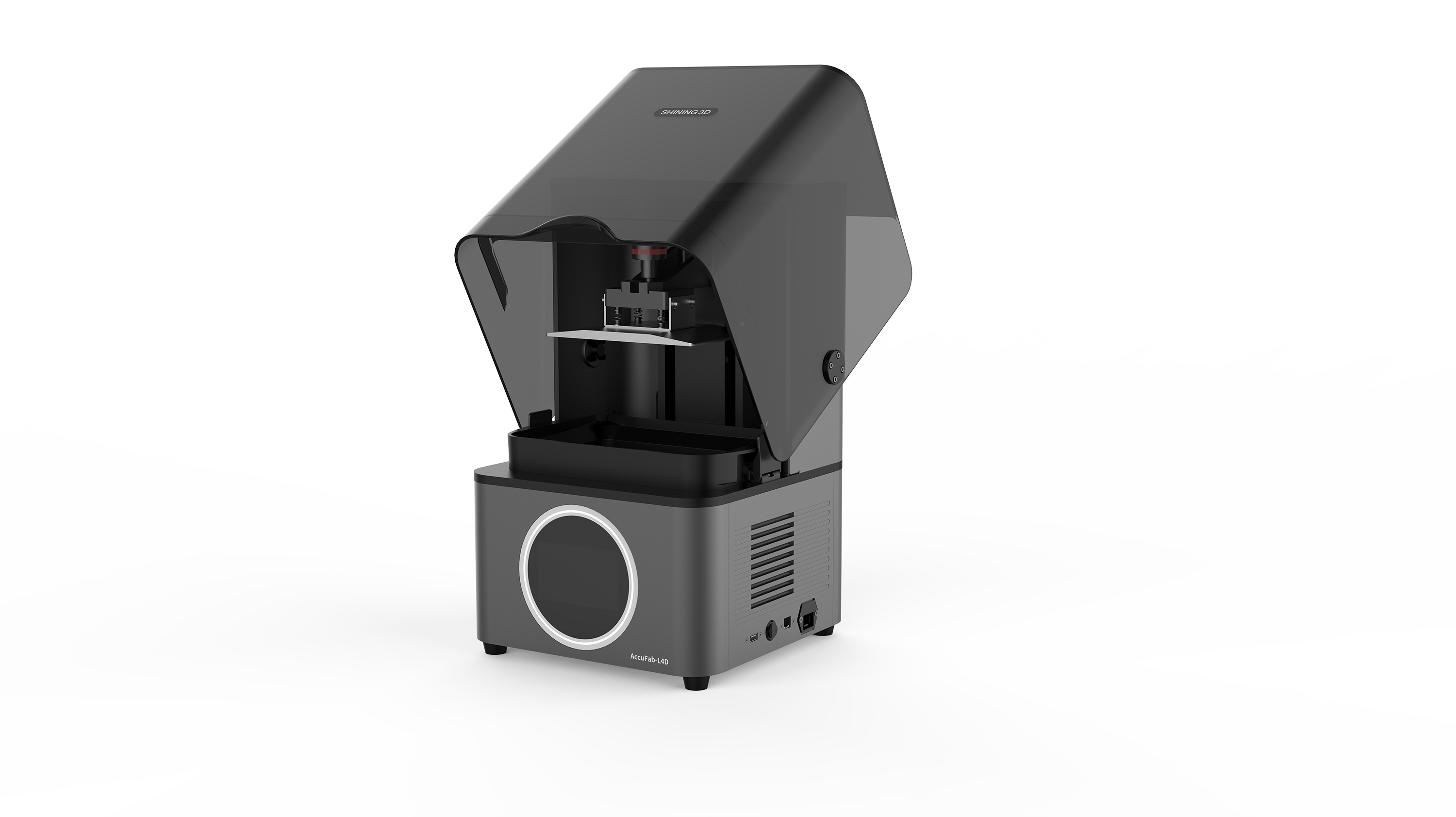

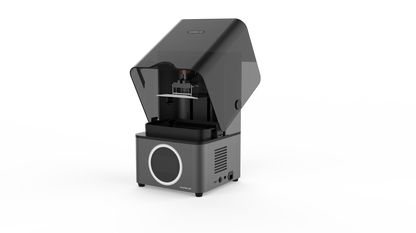

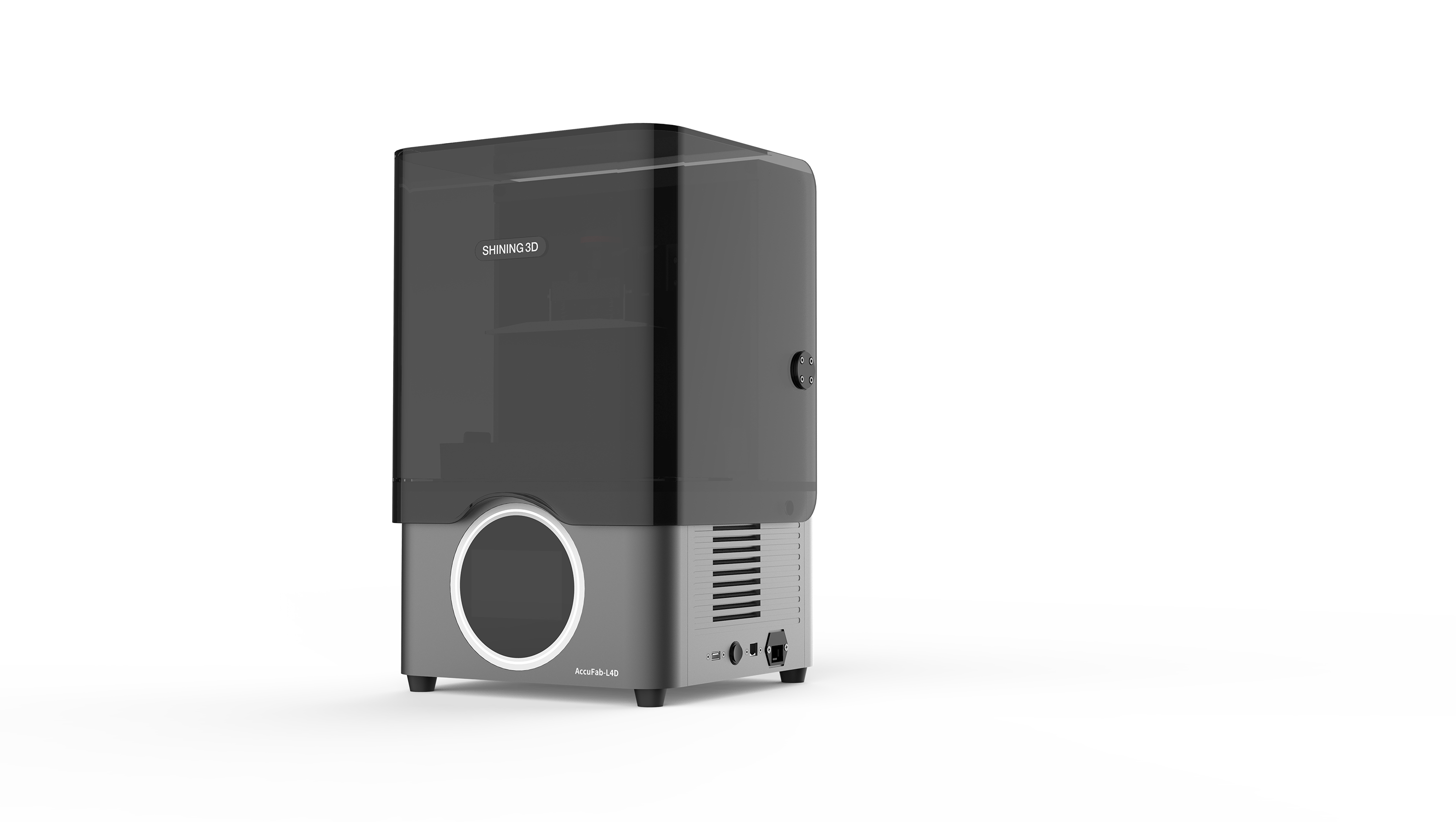

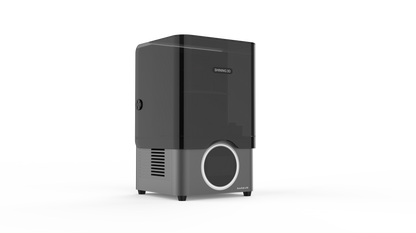

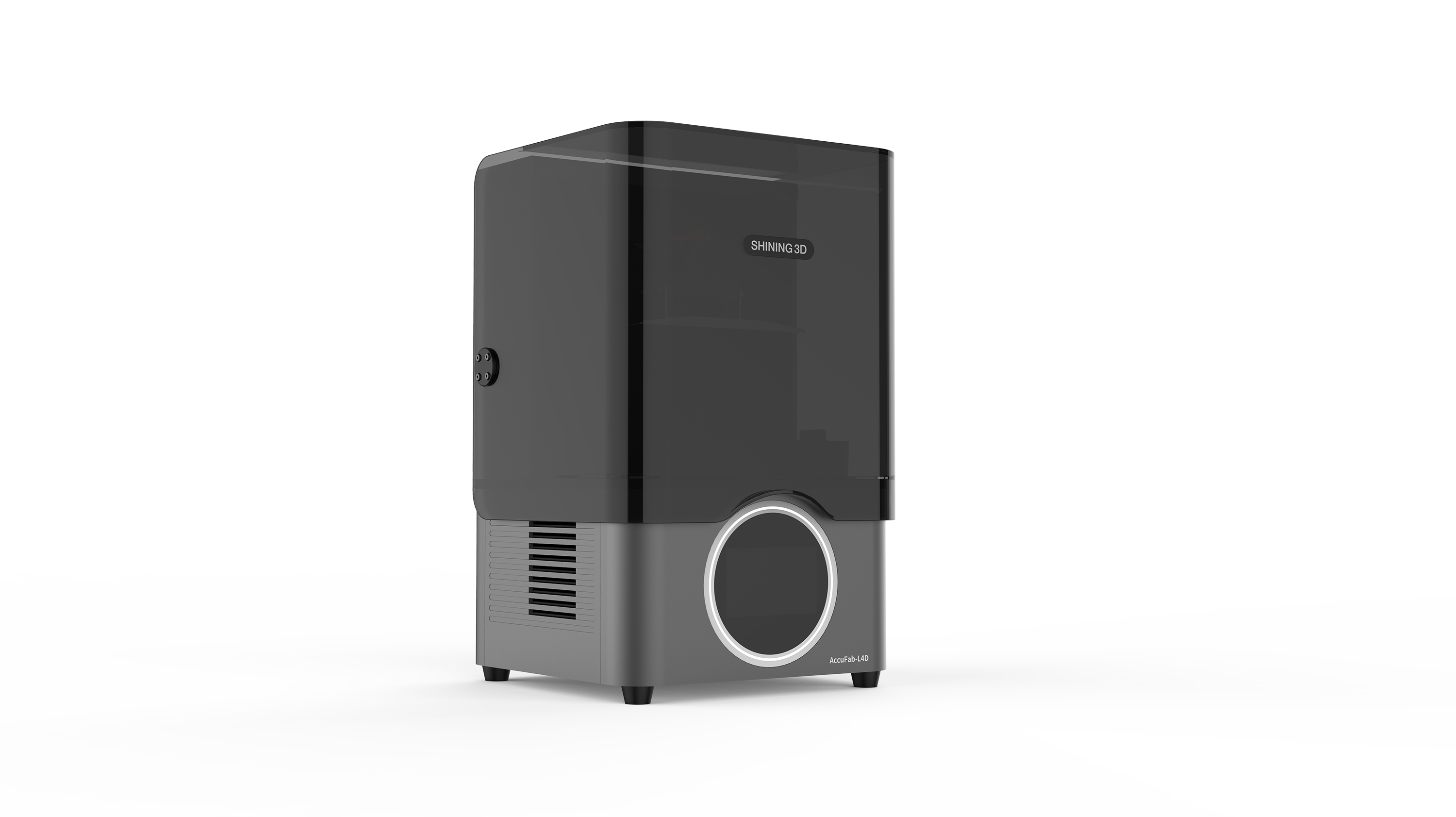

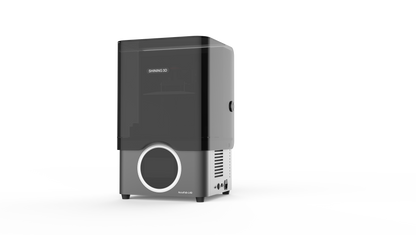

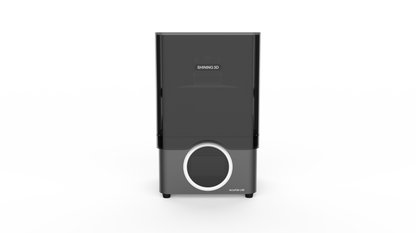

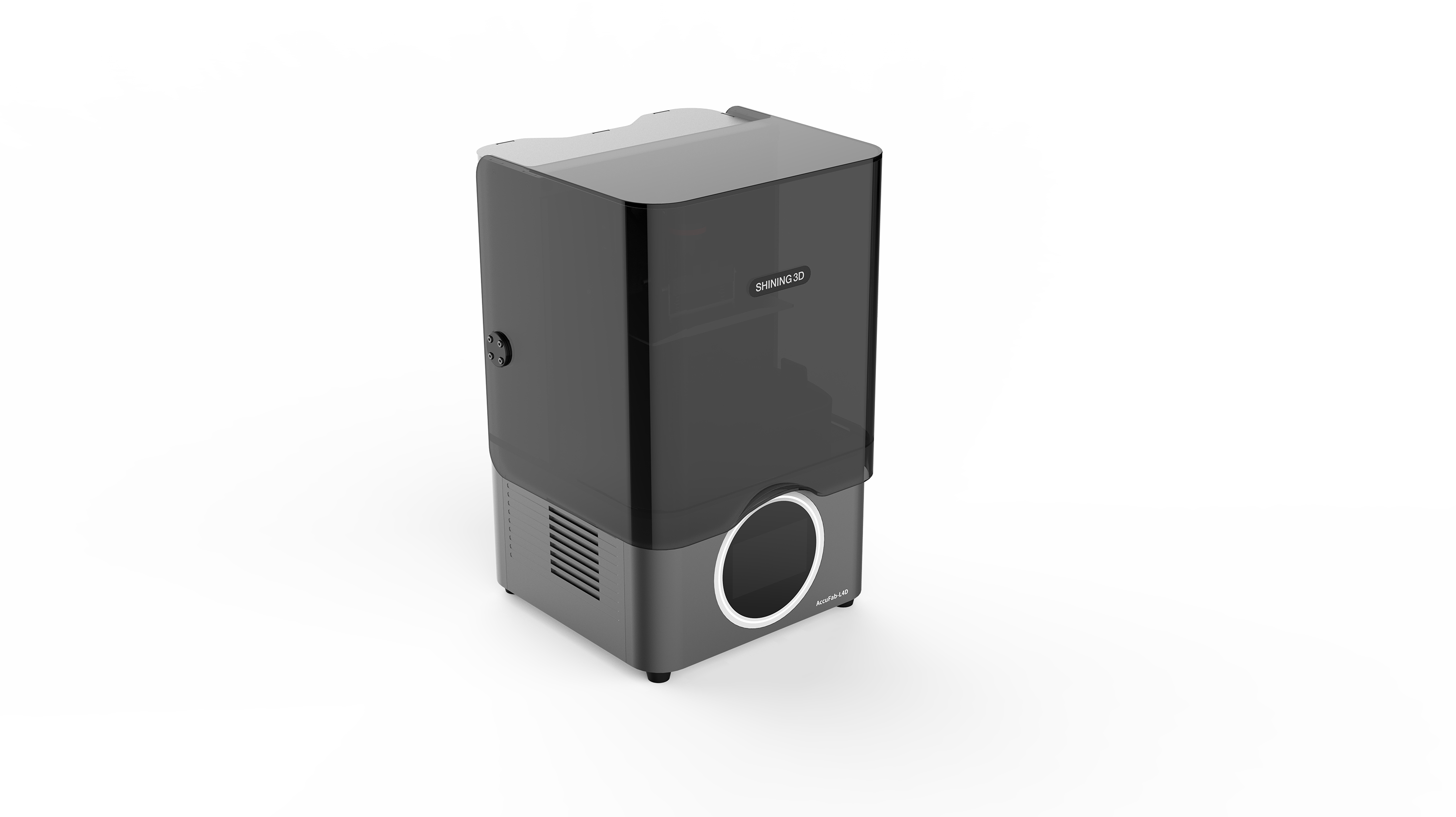

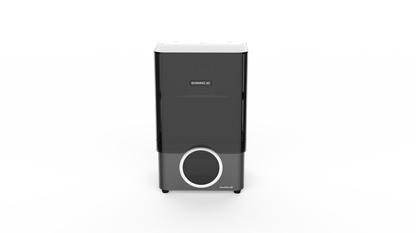

AccuFab-L4D Dental 3D Printer
The AccuFab-L4D is a state-of-the-art LCD dental 3D printer from Shining 3D , featuring an excellent combination of large build volume, high precision, and intelligent operation. It is specifically designed for use in digital dental labs and dental practices that demand maximum efficiency and reliability in additive manufacturing.
Product highlights:
-
4K LCD technology : High-resolution 4K monochrome screen (3840 × 2400 px) for precise, detailed print results at high printing speeds.
-
Large build volume : 192 × 120 × 180 mm – ideal for multiple prints of models, rails or drilling templates in one pass.
-
Fast printing cycles : The monochrome technology enables short exposure times and thus efficient production processes.
-
Excellent detail : With an XY resolution of 49 μm, the L4D delivers impressively fine structures – even with complex geometries.
-
User-friendliness at the highest level : Intuitive touchscreen interface, pre-installed parameters for Shining 3D resins, easy data transfer via WLAN or USB.
-
Open system : Compatible with a wide range of dental resins – both Shining 3D and third-party.
-
Seamless integration into the digital workflow : Perfect complement to Shining 3D scanners (AutoScan series) and AccuDesign software.
Technical data:
| feature | specification |
|---|---|
| Printing technology | LCD (Masked Stereolithography) |
| light source | 405 nm UV LED |
| LCD resolution | 4K Monochrome (3840 × 2400 px) |
| XY resolution | 49 μm |
| Installation space | 192 × 120 × 180 mm |
| Layer thickness | 25–100 μm |
| Print speed | up to 50 mm/h |
| touchscreen | 5″ color display |
| Data transfer | USB / Wi-Fi / Ethernet |
| File formats | STL, OBJ, 3MF |
| Dimensions | 360 × 360 × 530 mm |
| Weight | approx. 19 kg |
| software | AccuWare, Dental Synergy |
Areas of application:
-
Dental models (aligners, prosthetics, diagnostics)
-
Drilling templates for implantological procedures
-
Splints (e.g., night guards, sleep guards, or bite guards)
-
Provisionals and temporary restorations
-
Castable structures (castables)
-
Gingival masks
Conclusion:
The Shining 3D AccuFab-L4D offers a powerful yet compact solution for labs and practices that value speed, precision, and flexibility. With its large build volume, open material platform, and intuitive operation, it's the perfect entry-level solution or the ideal complement to your digital dental workflow.
Comparison: AccuFab-F1 vs. L4D vs. CEL
| feature | AccuFab-F1 | AccuFab-L4D | AccuFab-CEL |
|---|---|---|---|
| Printing technology | DLP (Digital Light Processing) | LCD (Masked Stereolithography) | LCD (Masked Stereolithography) |
| Resolution (XY) | 25 μm | 49 μm | 50 μm |
| LCD resolution | – (DLP projector) | 4K Monochrome (3840 × 2400 px) | 4K Monochrome (3840 × 2400 px) |
| Build volume (XYZ mm) | 144 × 81 × 160 | 192 × 120 × 180 | 144 × 81 × 160 |
| Print speed | up to 50 mm/h | up to 50 mm/h | up to 50 mm/h |
| Layer thickness | 25–100 μm | 25–100 μm | 25–100 μm |
| Material platform | Open (Shining + third-party providers possible) | Open (Shining + third-party providers possible) | Open (Shining + third-party providers possible) |
| Area of application | Dental laboratories with high precision demands | Productive laboratories with high printing requirements | Chairside & practical approach (compact & fast) |
| Device size (approx.) | 360 × 360 × 530 mm | 360 × 360 × 530 mm | 360 × 360 × 450 mm |
| Weight | approx. 19 kg | approx. 19 kg | approx. 15 kg |
| software | AccuWare, Dental Synergy, Shining Cloud | AccuWare, Dental Synergy | AccuWare, Dental Synergy, Cloud connectivity |
| Special features | DLP projector for top precision | Largest build volume of the series | Particularly compact & practice-oriented |
🦷 Short conclusion:
-
AccuFab-F1 → For maximum precision & detail, ideal for demanding laboratories
-
AccuFab-L4D → For efficient series production with large print volumes
-
AccuFab-CEL → For chairside applications & compact everyday solutions in the practice or small laboratory
The printer can be ordered directly online. If you would like a comprehensive quote including delivery, installation, instruction, or training, we would be happy to assist you personally. Simply contact us – we will create a quote tailored to your needs.
