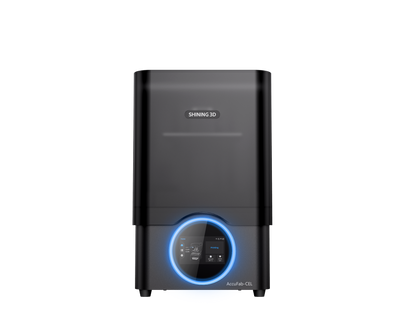

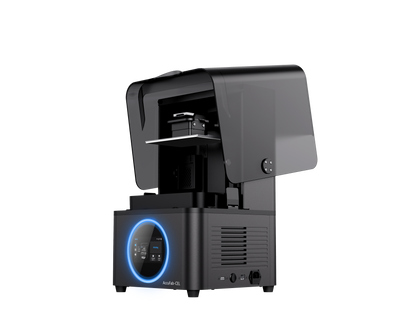

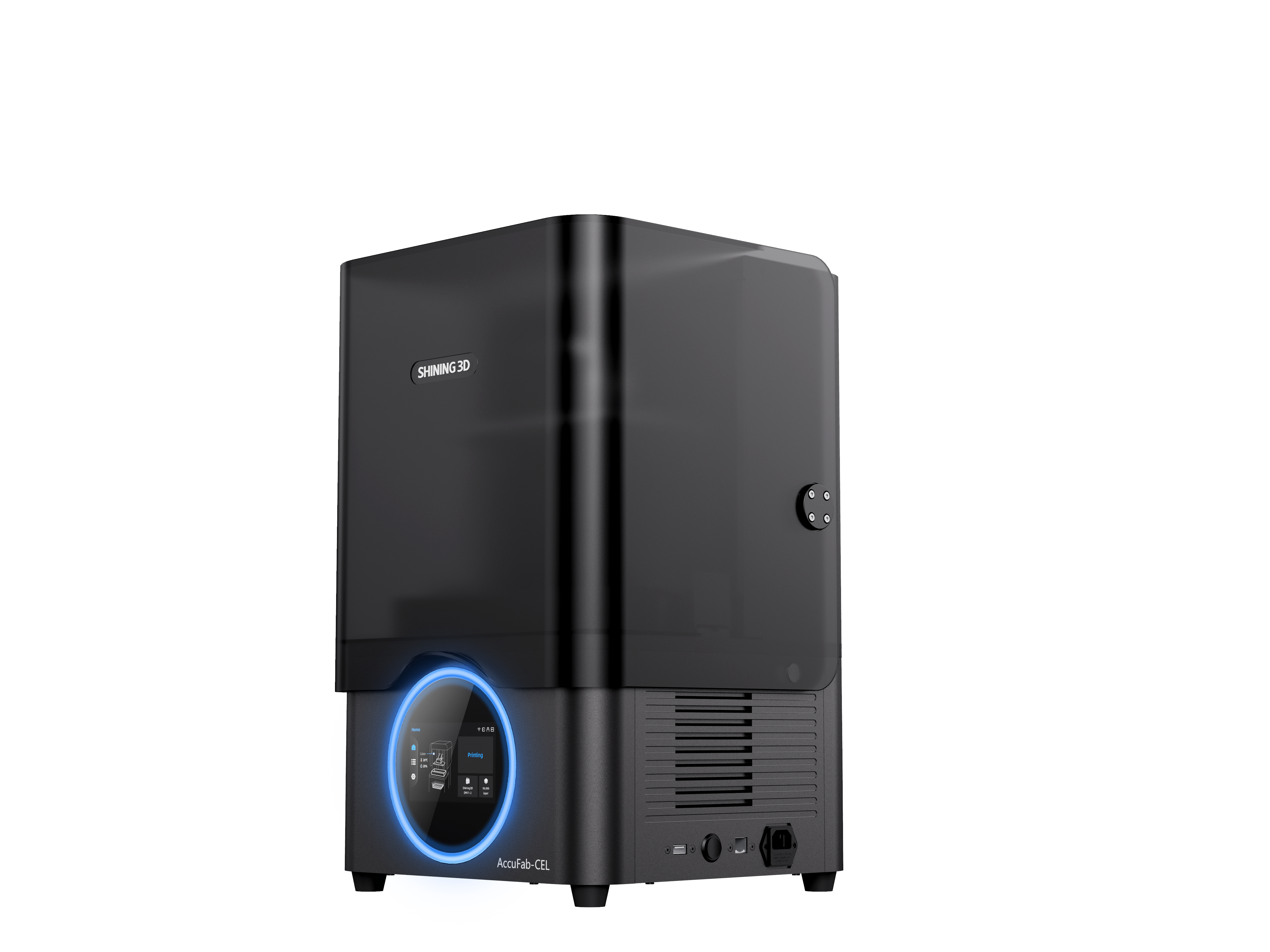

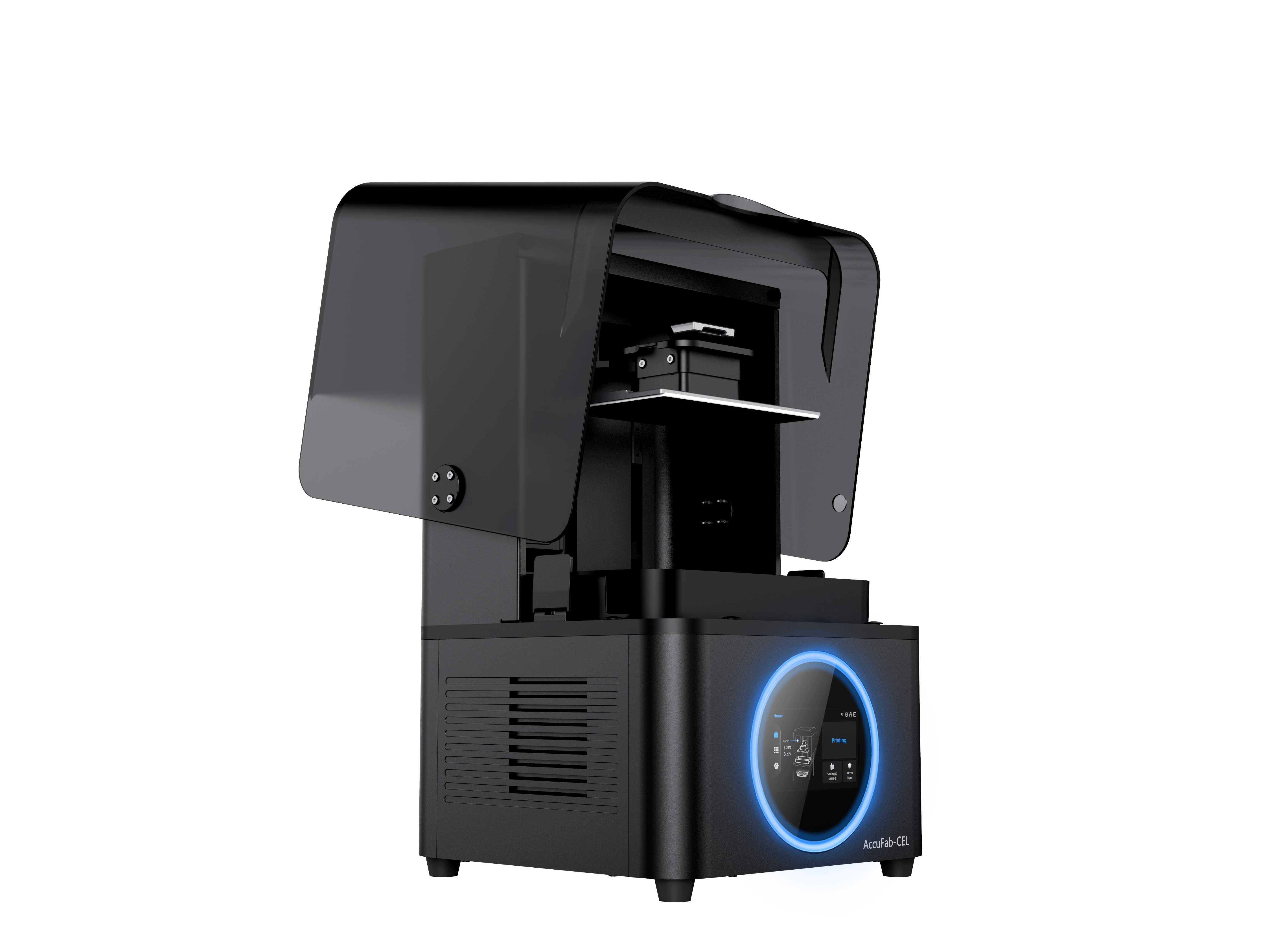

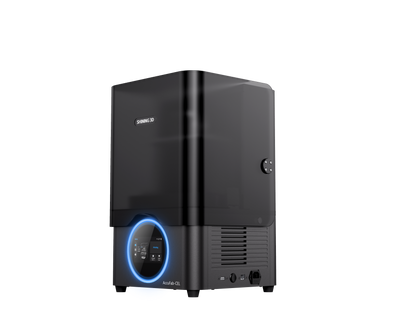

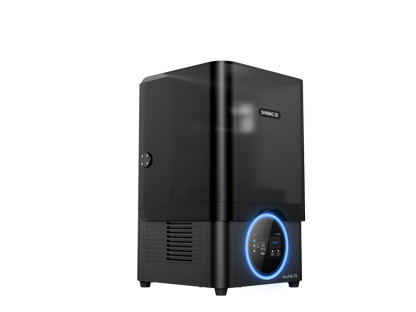

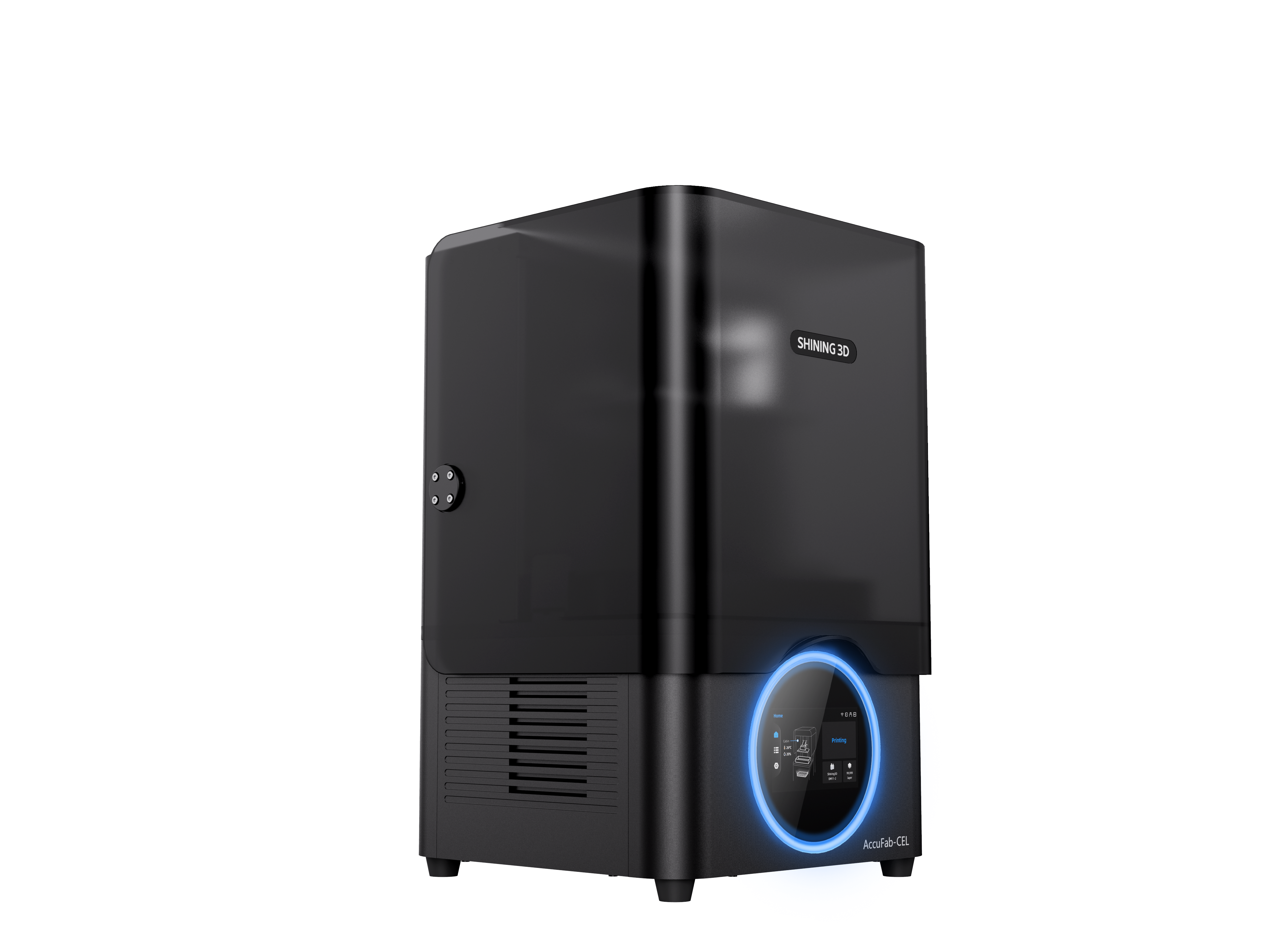

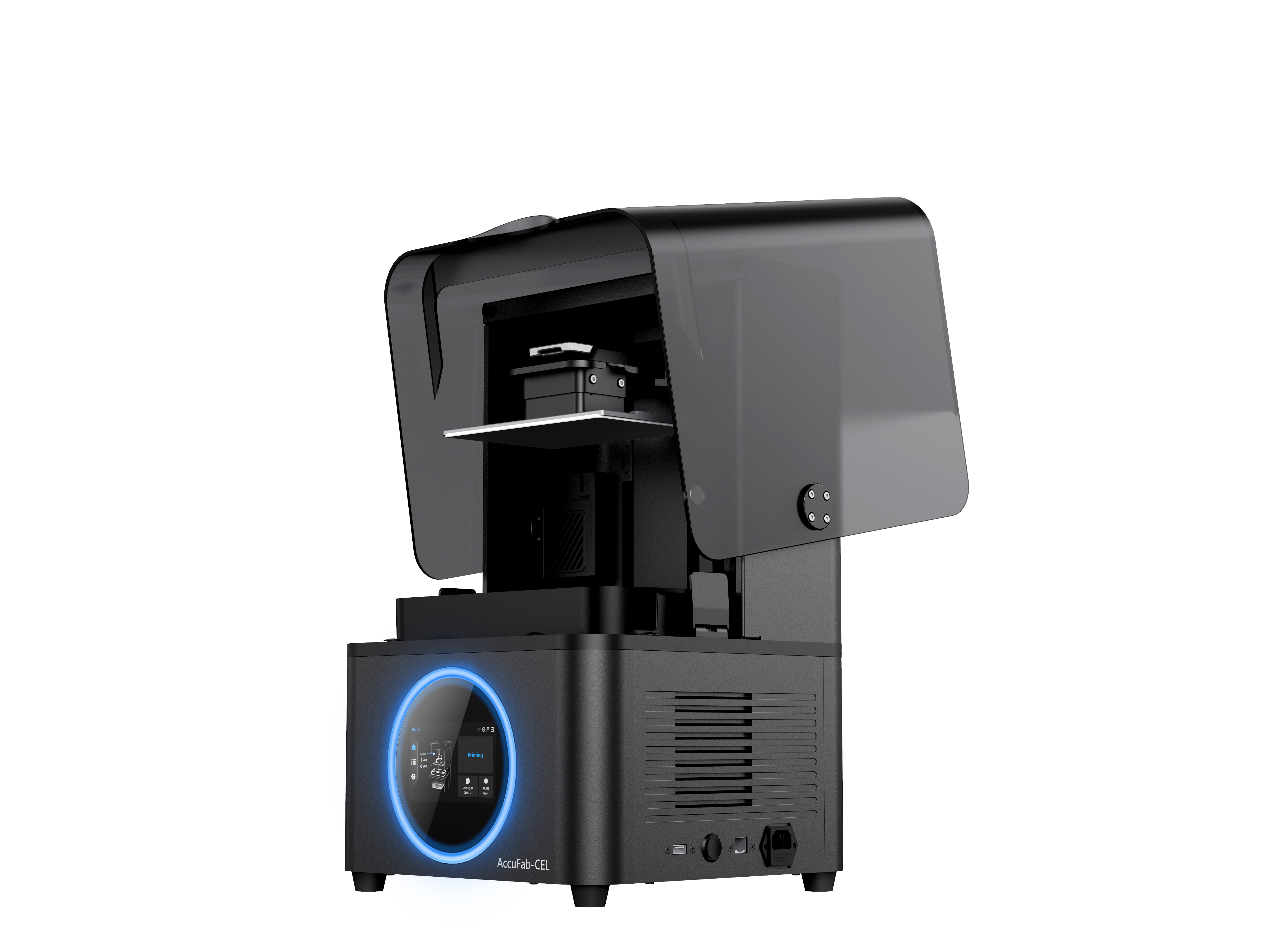

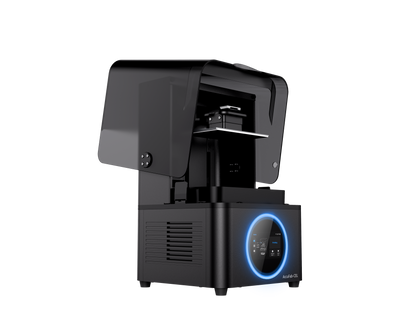

AccuFab-CEL Dental 3D Printer
The high-precision LCD printer for chairside and laboratory applications
With its 4K monochrome technology, intuitive operation and reliable print quality, the CEL is particularly suitable for chairside workflows , such as the production of splints, models and temporary restorations – quickly, efficiently and economically.
| feature | Value |
|---|---|
| External dimensions (W × D × H) | 360 × 360 × 530 mm |
| Weight | approx. 22 kg |
| Installation space (X × Y × Z) | 192 × 120 × 180 mm (standard platform) 70 × 70 × 180 mm (small platform) |
| resolution | 5760 × 3600 pixels (6K) |
| Pixel size | 35 µm |
| Optical system | 9.25″ monochrome LCD, UV light 405 nm, up to 8 mW/cm² |
| Max. print speed | up to 100 mm/h (depending on material) |
| Layer thickness | 50 – 100 µm (adjustable) |
| Accuracy (repeatability/position accuracy) | ± 35 µm |
| Connections/Network | USB, Wi-Fi, Ethernet |
| Operating temperature | 20 °C – 35 °C |
| Humidity (non-condensing) | 30 – 70% |
| Power consumption | 110-240V AC, 50/60Hz, 240W max |
| Special features | Dual-platform system, automatic parameter adjustment (AI), heated print chamber, cloud connection |
| Packaging dimensions | 480 × 480 × 720 mm |
| Packaging weight | approx. 30 kg |
| Certifications | CE, FCC, RoHS |
If you'd like a comprehensive quote including delivery, installation, instruction, or training, we'd be happy to assist you personally. Simply contact us – we'll create a customized quote for your needs.
Estimated printing times for different objects
- Orthodontic models: 14 minutes Drilling templates: 20 minutes
- Crowns & Bridges: 11 minutes Implant models: 20 minutes
- Dentures: 70 minutes with vertical printing
- Rail: 45 minutes with inclined printing
* Please note, printing time may vary depending on layer thickness and number of layers to be printed.
Areas of application
- Aligner and prosthetic models
- Splints (bruxism splints, bite splints)
- Provisionals & temporary crowns/bridges
- Drilling templates
- Castable objects (e.g. for model casting)
- Gingiva masks
Multi-size ceramic platforms
clean, reliable print results
The AccuFab-CEL from SHINING 3D is the world's first 3D printer with an optional ceramic platform in two sizes (small & standard). The biocompatible, chemically inert surface reliably prevents residue adhesion – for contamination-free, safe results directly for use in the oral cavity .
In addition to greater print reliability, the ceramic platform improves print quality through reduced particle contamination and uniform surfaces. It also impresses with its extreme durability compared to metal or plastic platforms – ideal for daily use in the dental laboratory or practice.
With this innovation, SHINING 3D sets new standards in dental 3D printing.
easy & fast
receive individual advice
Transparent advice at your preferred time / receive your fair offer within 24 hours
Intelligent cabin monitoring with heating function for maximum pressure stability
The AccuFab-CEL monitors the temperature and humidity in the print booth in real time. If the temperature is too low, the booth is automatically heated before printing – for optimal material properties and maximum dimensional accuracy.
Continuous monitoring is displayed on the touchscreen and warns of adverse environmental conditions. This reduces printing errors and significantly increases the success rate .
Conclusion
The AccuFab-CEL combines a compact design, modern 6K printing technology, and fast production times in a versatile device for chairside or laboratory use. Ideal for dentists who want to treat their patients the same day – precisely, flexibly, and cost-effectively.
